Product Name:Single-row ball slewing ring (with flange)

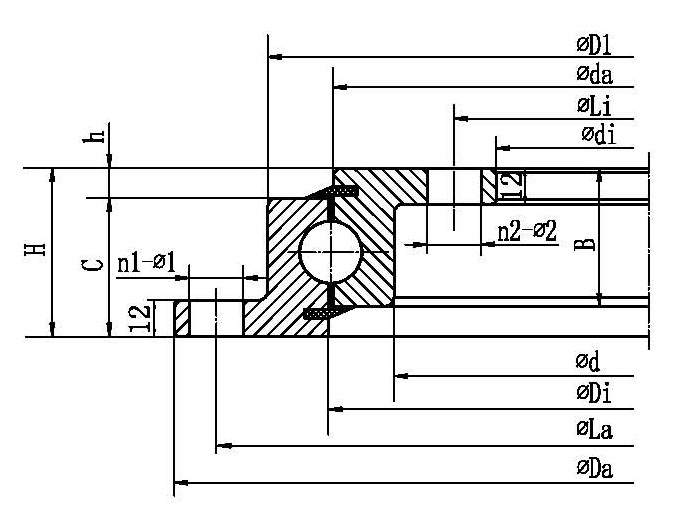

Designation			Dimensions(mm)			Mounting Hole Size						Structure dimensions (mm)						Basic load Ratings Coa(kN)	Weight (kg)
INA	Rothe Erde	TG	Da	di	H	La	Li	n1	n2	φ1	φ2	D1	d	B	C	Di	da	Basic load Ratings Coa(kN)	Weight (kg)
		SD.950.20.00.C	948	734	56	920	762	14	18	18	φ18	883	805	46	46	845.5	842.5	1030	50
VLU200844ZT			948	734	56	920	762	14	18	φ18	φ18	889	799.5	48	48	845.5	842.5	1200	53.8
VLU200844			948	734	56	920	762	14	18	18	18			48	48	845.5	842.5	600	48
	230.21.0875.013		947	735	56	920	762	14	18	18	18			46	46	845.5	842.5	510	47.8
		SD.950.20.00.C	946	736	56	920	762	14	18	φ18	φ18	883	805	46	46	845.5	842.5	1030	50
	280.30.0900.013		1100	805	90	1060	845	30	30	22	22			71	71	953.5	956.5	1750	131
VLU 300955			1100	805	90	1060	845	30	30	22	22			71	71	953	957	2550	135
		SD.1100.32.00.C	1100	805	90	1060	845	30	30	φ22	φ22	1017	893	71	71	955	955	2250	131
	280.30.0975.013		1098	807	90	1060	845	30	30	22	22			71	71	953.5	956.5	1750	131
	230.20.0900.013		1048	834	56	1020	862	16	20	18	18			46	46	945.5	942.5	570	53.1
	230.20.0900.503		1048	834	56	1020	862	32	40	18	18			46	46	945.5	942.5	570	52.3
		SD.1050.20.00.C	1048	834	56	1020	862	16	20	18	φ18	983	905	46	46	945.5	942.5	1440	55.6
VLU200944ZT			1048	834	56	1020	862	16	20	φ18	φ18	989	899.5	48	48	945.5	942.5	1350	61
VLU200944			1048	834	56	1020	862	16	20	18	18			48	48	945.5	942.5	670	54
	230.21.0975.013		1047	835	56	1020	862	16	20	18	18			46	46	945.5	942.5	570	53.1
	280.30.1000.013		1200	905	90	1160	945	30	30	22	22			71	71	1054	1056.5	1840	145
VLU301055			1200	905	90	1160	945	30	30	22	22			71	71	1053	1057	2800	149
		SD.1200.32.00.C	1200	905	90	1160	945	30	30	φ22	φ22	1117	993	71	71	1055	1055	2500	145
	280.30.1075.013		1198	907	90	1160	945	30	30	22	22			71	71	1054	1056.5	1840	145
	230.20.1000.013		1198	984	56	1170	1012	16	20	18	18			46	46	1096	1092.5	665	61.9
	230.20.1000.503		1198	984	56	1170	1012	32	40	18	18			46	46	1096	1092.5	665	61.1
		SD.1200.20.00.C	1198	984	56	1170	1012	16	20	18	φ18	1133	1055	46	46	1096	1092.5	1700	62.8
VLU 201094			1198	984	56	1170	1012	16	20	18	18			48	48	1096	1092.5	770	62.5
		SD.1200.20.00.C	1198	984	56	1170	1012	16	20	φ18	φ18	1133	1055	46	46	1096	1092.5	780	62
	230.21.1075.013		1197	985	56	1170	1012	16	20	18	18			46	46	1096	1092.5	665	61.9
	280.30.1100.013		1300	1005	90	1260	1045	36	36	22	22			71	71	1154	1156.5	1900	159
VLU 301155			1300	1005	90	1260	1045	36	36	22	22			71	71	1153	1157	3100	164
		SD.1300.32.00.C	1300	1005	90	1260	1045	36	36	φ22	φ22	1217	1093	71	71	1155	1155	2700	159
	280.30.1175.013		1298	1007	90	1260	1045	36	36	22	22			71	71	1154	1156.5	1900	159
	280.30.1200.013		1400	1105	90	1360	1145	42	42	22	22			71	71	1254	1256.5	1950	172
VLU 301255			1400	1105	90	1360	1145	42	42	22	22			71	71	1253	1257	3350	177
		SD.1400.32.00.C	1400	1105	90	1360	1145	42	42	φ22	φ22	1317	1193	71	71	1255	1255	3000	172
	280.30.1275.013		1398	1107	90	1360	1145	42	42	22	22			71	71	1254	1256.5	1950	172
	280.30.1300.013		1500	1205	90	1460	1245	42	42	22	22			71	71	1354	1356.5	2000	186
VLU 301355			1500	1205	90	1460	1245	42	42	22	22			71	71	1353	1357	3600	191
		SD.1500.32.00.C	1500	1205	90	1460	1245	42	42	φ22	φ22	1417	1293	71	71	1355	1355	3260	186
	280.30.1375.013		1498	1207	90	1460	1245	42	42	22	22			71	71	1354	1356.5	2000	186
	280.30.1400.013		1600	1305	90	1560	1345	48	48	22	22			71	71	1454	1456.5	2050	200
	280.30.1400.013		1600	1305	90	1560	1345	48	48	φ22	φ22	1517	1393	71	71	1457	1453.5	4100	200
VLU 301455			1600	1305	90	1560	1345	48	48	22	22			71	71	1453	1457	4000	206
		SD.1600.32.00.C	1600	1305	90	1560	1345	48	48	φ22	φ22	1517	1393	71	71	1455	1455	3440	200
